General Use Ropes

BRAID ON BRAID / DOUBLE BRAIDED ROPES

MARINE APPLICATION ROPE

Thanawala & co. manufactures specific design Polyester Double braid ropes is suited for the most harshest conditions and will hold up to any task required. These polyester ropes are easy to splice, high strength with special hard wearing covers designed for longer duration. We specialize in an exceptional range of double braided polyester ropes, intricately designed for extreme durability and fit for any purpose with over years of experience and leading suppliers in Mumbai and across India. Polyester ropes have good strength and extension characteristics, and are easy to handle and knot allowing them to be used in a wide range of general and industrial applications

Double Braided Nylon Ropes

Strongest double braid general purpose rope available. Made from Hi-Tenacity tire cord nylon yarns. This rope is a balanced construction and thus non-rotational and torque free. Very good abrasion resistance. The rope will stretch about 20%, allowing it to absorb shock action (such as wave action). Resistant to rot, mildew, oils, gas and most chemicals. Very good UV resistance. Loses about 5% of its strength when wet. Double Braid Nylon line is definitively the most popular lines out there. Extremely durable and easy to splice, is the best choice for cruising sailboats. It will handle medium to high loads of Polyester and Nylon sails at the best price per meter.

Double Braided Polyester Ropes

Very strong double braid general purpose rope. Made from Hi-Tenacity tire cord polyester yarns. This rope is a balanced construction and thus non-rotational and torque free. Excellent abrasion resistance. The rope will stretch about 15%, allowing it to absorb some shock action. Resistant to rot, mildew, oils, gas and most chemicals. Excellent UV resistance. No strength loss when wet.

Benefits of our Double Braids

  • Braided evenly with uniform cross section.
  • Absorption of energy is many times greater than natural fiber ropes of the same size like manila or sisal.
  • More flexible than conventional Hawser Laid (twisted) ropes.
  • Flexibility is maintained at lower as well as higher temperatures.
  • Very strong especially under snatch conditions.
  • Braided evenly with uniform cross section.
  • Absorption of energy is many times greater than natural fiber ropes of the same size like manila or sisal.
  • More flexible than conventional Hawser Laid (twisted) ropes.
  • Flexibility is maintained at lower as well as higher temperatures.
  • Very strong especially under snatch conditions.
  • Recover well after extension.
  • Better grip handling & do not kink
  • Nylon Double Braids Manufactured to BIS Specification IS-12733-1989 & BS 4928-1985.
  • Polyester double braid manufacture to Specification No. EN 14684.

MARINE APPLICATION ROPE
Double Braids Nylon Rope
Double Braids Polyester Rope

TECHNICAL DETAILS FOR DOUBLE BRAIDED ROPES

POLYAMIDE(NYLON) rope POLYESTER ROPE
NOMINAL DIA (MM) WT./100 MTRS (KGS) Break.Load. (KGF) WT./100 MTRS (KGS) Break.Load (KGF)
6 2.4 950 2.8 830
8 4.0 1.450 5.3 1400
10 7.1 2.720 8.0 2200
12 9.5 3.180 11.5 3170
24 35.7 12700 45.9 12100
28 48.6 18000 62.5 16300
32 63.5 22000 95.5 21000
36 80.4 27000 103.5 26400

SAILING APPLICATIONS

Sea worthy ropes must be able to withstand the elements, including moisture, the sun's rays and in some cases, salt or even freezing rain. Sailboat lines made from durable, high-quality materials can help ensure greater satisfaction, whether the voyage is a pleasure cruise or a highly competitive race.

That’s why we sell carefully-selected sailboat sheets featuring trusted braiding or weaving techniques. For example, double-braid polyester line is an excellent choice for jibs, spinnaker and main halyards.

The type of sailing you’re planning also affects the choice of rope. For example, for day sailing, double-braid polyester should be adequate for most boats.

Features

  • Innovations to lead the way Range covers Polypropylene to UHMWPE Performance durability & quality built to last.
  • Our range covers ropes from Nylon, Polypropylene, Polyester, Aramid and UHMWPE Fibres.
  • Performance durability & quality built to last.

APPLICATION

Rigging Lines
Painter Lines
Spinnaker halyards
Topping lifts
Traveller control lines
Inhaul Lines
Main and Jib halyards on cruising and daysailing sailboats.
Mainsheet
Cunningham
Yoga Use
Sail Ties
Anchor warps
Halyards
Shipping & Marine (Tie Downs, Dock Lines, Anchor Lines, Slings, Jumper Lines)
Anchor Lanyard lines
Oil & Drilling
Cable Pulling/OPGW Stringing
Transmission Tower Erection
Ropes for theater and circus rigging

SPECIFICATION FOR SAILING ROPES

MAIN SHEETS (MATT & SHINY FINISH)
SIZE (MM) MATT BS (KGF) SHINY BS (KGF)
8 1000 1200
10 1400 2000
12 1600 2800

Construction

Most modern ropes are made of two components – a core that takes the bulk of the load, accounting for up to 95 per cent of the rope’s strength, and a protective outer cover that provides abrasion resistance, protection from sunlight and so on. In the past the cover was also responsible for improving handling and comfort, but for performance boats this is now often sacrificed in favour of a small performance benefit. Some lines are used without a cover, particularly high-strength control lines, but these will normally have a coating that improves handling characteristics and provides some protection against ultra-violet radiation.

In racing only four or five major fibres are used for rope, which may be blended together in different ways to produce lines that are optimised for each function. Polyester is the most common single material.

Our ropes sheets will take you where you want to go..

Properties of rope fibres

MATERIAL STRETCH Typical Use
Polypropylene medium to high lightweight floating line used for man overboard recovery and occasionally as core for lightweight sheets on small boats. Poor UV resistance.
Nylon very high anchor rode
Polyester fairly high / moderate docklines, cruising halyards and sheets, low load control lines
UHMWPE and other aramids very low halyards, sheets and control lines for dinghies and larger raceboats

SYNTHETIC WOVEN TAPES & WEBBINGS

SYNTHETIC WOVEN TAPES
SYNTHETIC WOVEN TAPE

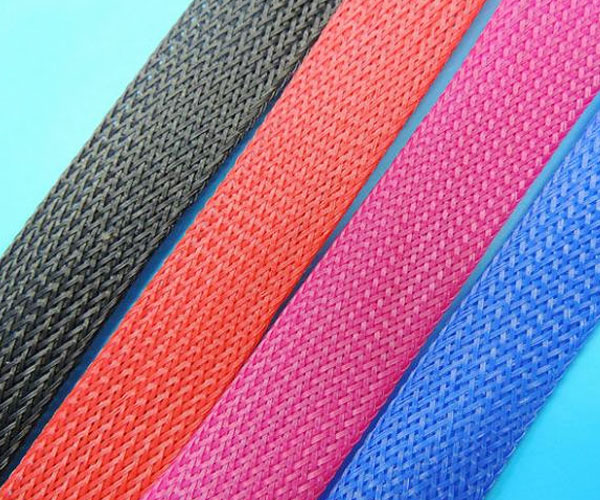

SYNTHETIC WOVEN WEBBINGS

Features:

  • Made from Virgin material only
  • Widths available are ranging from 8mm to 100mm
  • Better finish, strength, colour and design
  • Assured longer life

Applications

They are made to each of our customers individual specifications. We also weave military specification webbings and commercial versions of military specifications.

  • Military Use
  • Luggage & Thermo ware
  • Adventure Sports (Slack Lining, Harness)
  • Industrial Use
  • Lifting Purpose
  • Curing tapes
  • Belts for Yoga

Nylon Rope Manufacturers in India : We are prime suppliers and manufacturers of narrow woven fabric in Mumbai and all over India. Our extensive experience in the narrow woven fabrics has enabled us to offer exquisite designs at competitive rates. Narrow Woven Fabrics are extensively used in belt, bags, bottles and saddler. Manufactured in compliance with the international quality standards, our range is highly appreciated for its perfect finish, high tensile strength, dimensional accuracy and many more attributes.

Based in Mumbai, we are popular across India for manufacturing of Narrow Woven Fabric, Thermoware Tapes, Thermoware Webbings, Safety Belts for climbing, Safety harness, Dog leashes, Fall Protection Harness

Our Products are made for each of our customers as per their individual specifications. We also weave military specification webbings and commercial versions of military specifications.

SOME DOS AND DONTS

Removal of Rope from Coils

  • Uncoil from inside to prevent kinking
  • Never stand in line with rope under tension. Recoil under rope failure leads to physical injury.
  • Never overload a rope.
  • Avoid ropes showing signs of ageing & wear.

Discard rope if :

  • Sheath is extremely worn.
  • Rope has been subjected to extreme loads.
  • Rope is very dirty & dirt remains after washing.
  • Sheath shows damage & core visible.

CHECKLIST - CHOOSING A ROPE

  • Broken yarn filaments : This indicates the use of poorly maintained machinery or lack of yarn finish. This defect will result in lower strength (because a portion of the rope is already broken), greater stretch, premature wear and more rapid degradation.
  • High or low strands : This indicates the use of poorly maintained machinery or lack of yarn finish. This defect will result in lower strength (because a portion of the rope is already broken), greater stretch, premature wear and more rapid degradation.
  • Looped strands : This defect is usually caused by unequal yarn tensioning in the manufacturing process and results in the same problems as mentioned above.
  • Strand twist : All braided ropes should be constructed using clockwise and counter-clockwise twisted strands (referred to as “S” twist and “Z” twist in the trade). The reason for this design is to orient all of the fine yarn filaments parallel to the longitudinal axis of the rope allowing them to be combed rather than plucked, snagged and broken when dragged over a rough surface as they would be if they were at an angle or were at an angel or perpendicular to the axis of rope.
  • Properly Rope Size Selection : It is important for a rope to maintain the proper size while under load. Undersized rope presents less surface area to winch and sheave surfaces thereby requiring less yarn to bear more load. Undersized rope may require more wraps to develop the same holding power on a winch. This is especially true when the rope is wet or used in self-tailers. Undersize rope may perform poorly in various cam cleats and halyard stoppers. Check the weight per meter specifications to compare sizes of ropes made with similar materials.
  • Cleanliness : There is no reason to accept rope from a manufacturer with grease or oil spots. While it may not seriously affect performance, it is an indication of lack of commitment of quality and inspection.

We pride ourselves in the ability to develop return customers who need a quality product, service, at good prices.This process has seen Thanawala & Co. grow year to year since it’s start in 1986. Our product range is always growing. This growth is driven by our customer’s needs and of course the new machinery investments we have made along the way. With great price we say that we are one of the foremost nylon rope manufacturers in india

We are well-known for manufacturing of high quality Polyester Ropes, Braided Polyester Ropes, Sailing Ropes, Arborist Ropes, Tree Climbing Ropes and Nylon Rope. Thanawala & Co. is a top Polyester Ropes Manufacturer in Mumbai India and a leading Nylon Ropes Manufacturer in Mumbai India
